Cloud-based simulation of box framed timber beams

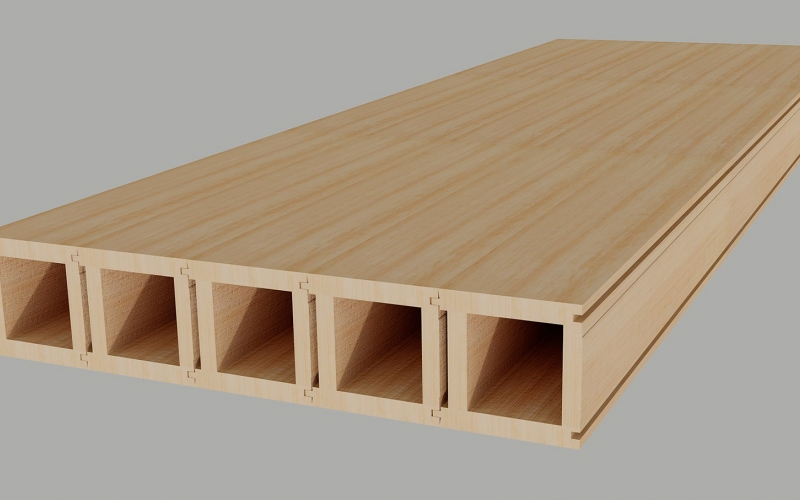

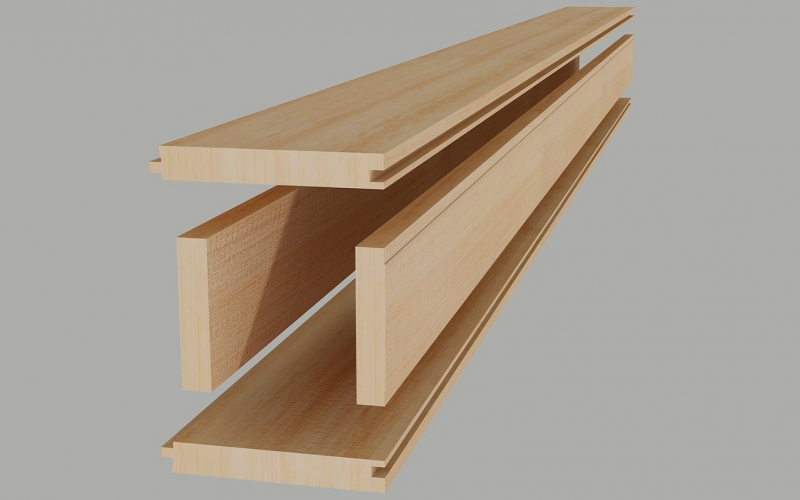

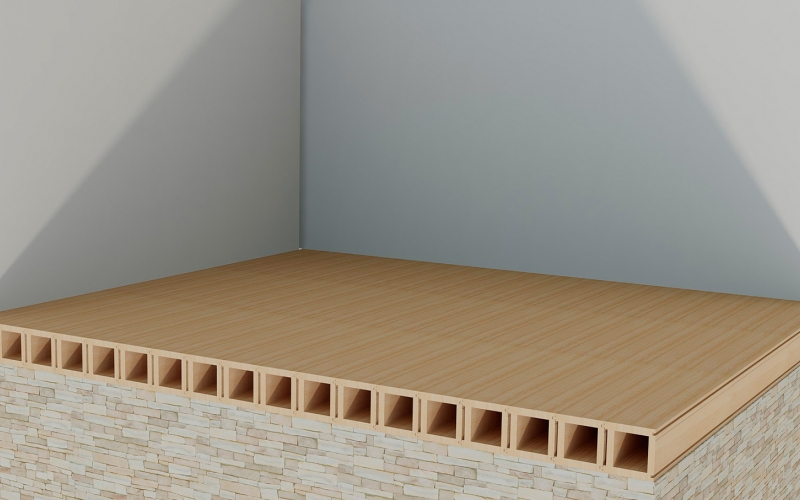

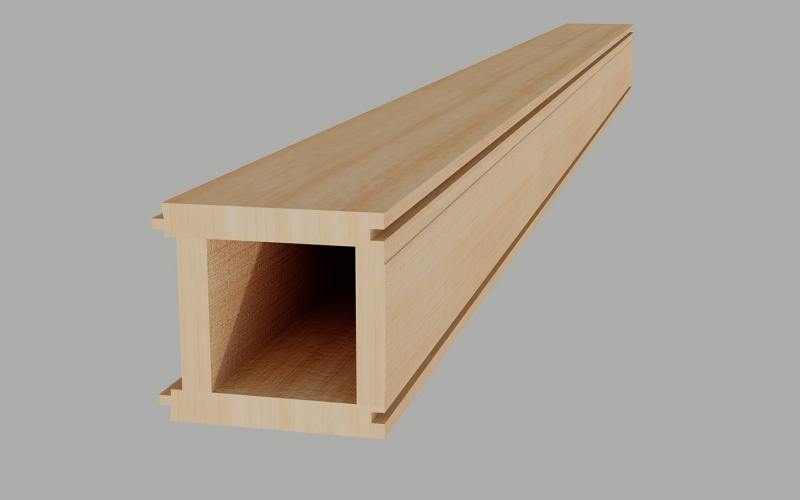

Maderas Besteiro is a Spanish SME that specializes in timber solutions for structural applications, such as house-building. It has recently taken an interest in offering a new product line of box framed timber beams made from Eucalyptus globulus. USC-PEMADE is the Structural Timber Engineering Department of the University of Santiago de Compostela.
Eucalyptus is ideal for structural purposes because of its high quality and resistance. Using this wood can allow construction companies to build homes faster, with less waste and less energy, in line with European Union housing guidelines.
Designing and testing a new structural product is an extremely costly process. As an SME, Maderas Besteiro faces a challenge to develop new products due to its small number of staff and lack of sufficient financial resources. A cost-effective computer simulation process would help to solve this problem.

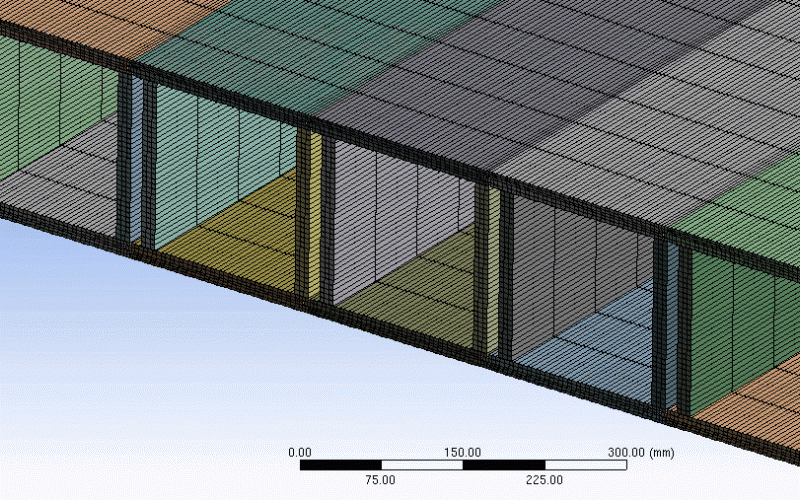

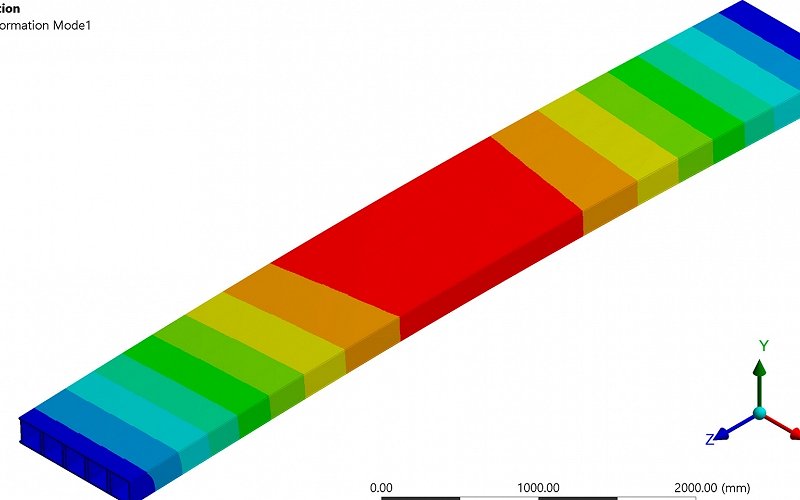

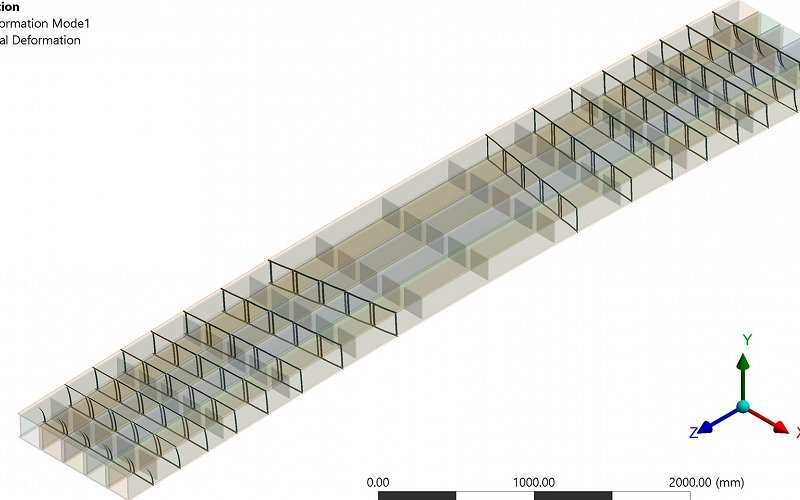

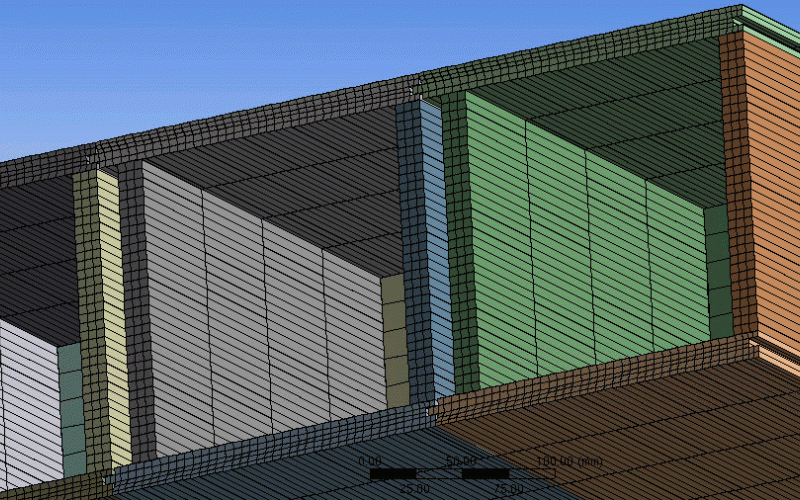

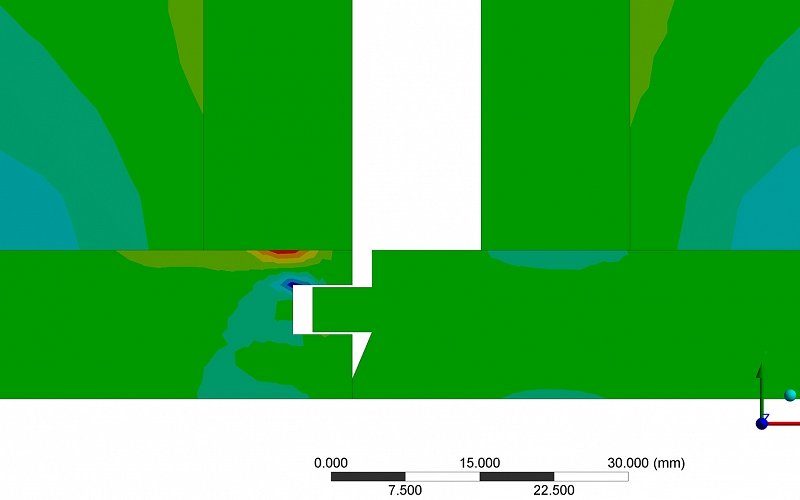

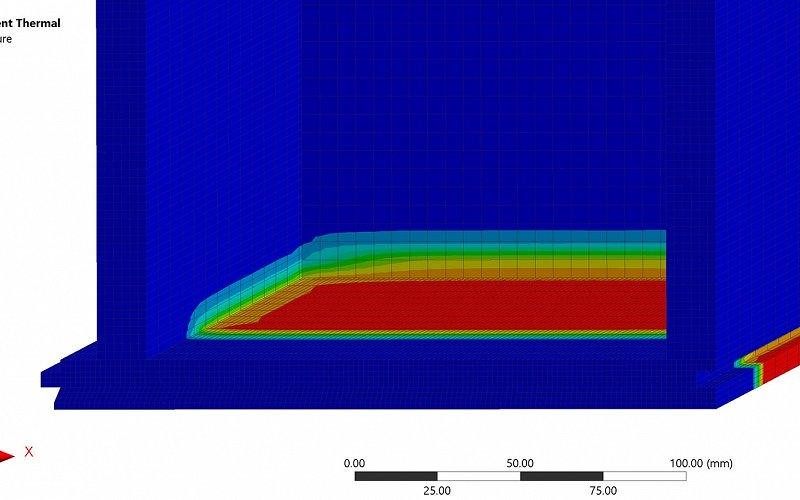

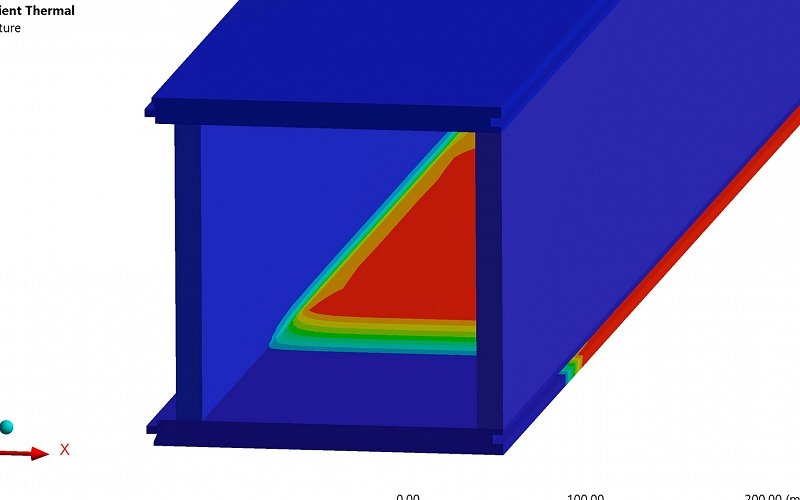

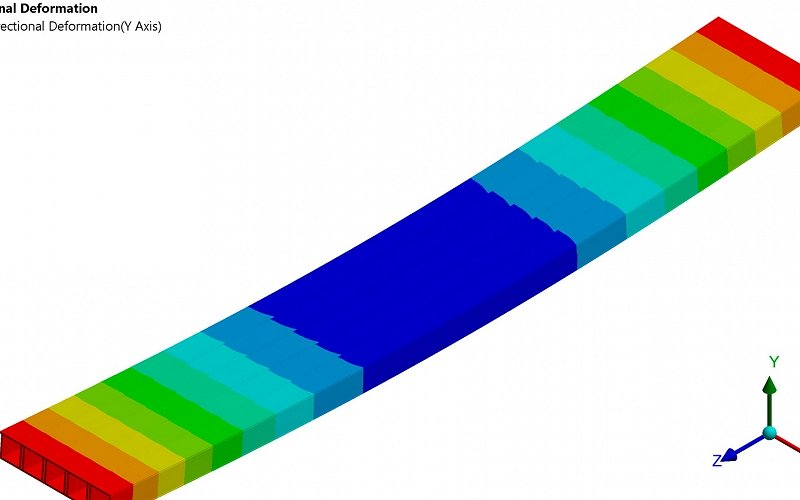

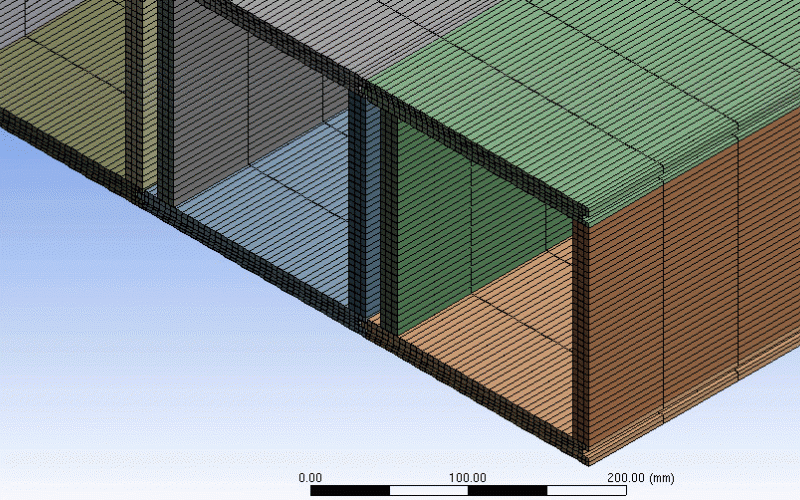

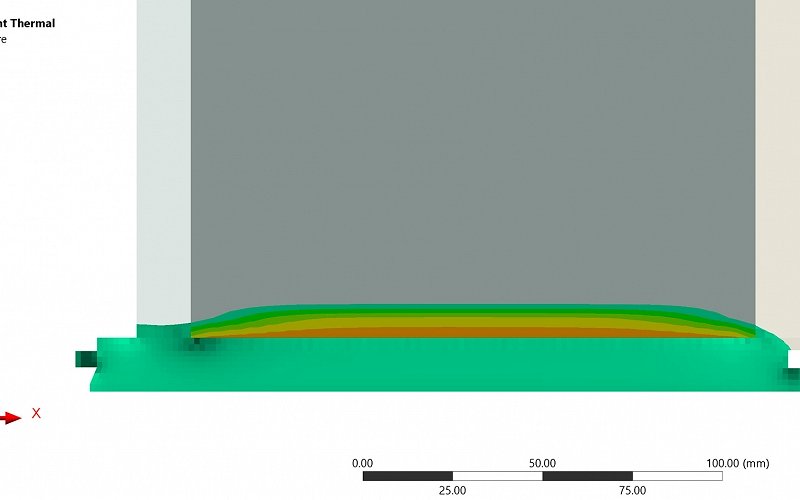

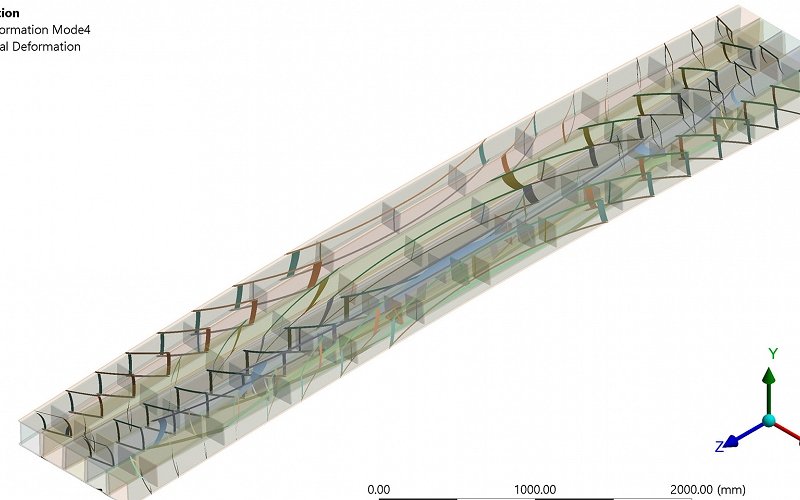

A virtual engineering workflow was designed and validated. The workflow combines the design, calculation and virtual validation stages of the process, through access to a Cloudbased HPC platform provided by Fortissimo. Using this solution has allowed Madera Besteiro to reduce their development costs and design times. A pay-per-use HPC model significantly reduces the computational costs compared to using in-house resources, and results in a better, more refined end product. The company can now optimise Eucalyptus-based solutions at minimum 19% faster than before the experiment. This will allow them to offer a better product at a lower cost than their competitors.
Thanks to the virtual design process offered by the Fortissimo Marketplace, Maderas Besteiro has significantly reduced their cost per m², when comparing the new box framed timber beam with the traditional framing system. Using eucalyptus instead of other hardwoods, their turnover is increased €40k per year. More importantly, Maderas Besteiro is now able to easily optimize new designs, meaning that it has a competitive advantage in its industry.
From now on, PEMADE will be able to simulate more complex models than before, including complete engineering structures. Moreover, the ability to simulate hardwood species such as eucalyptus will make it the leading academic group in Spain in this field.
End users of this workflow can reduce their computing costs by up to 81%. From a business perspective, it has an enormous potential as the timber industry has over 400,000 active companies. Gompute is now ready to offer a complete solution in the Fortissimo Marketplace for customers who need to simulate timber structures in a fast, easy and affordable way.
- Maderas Besteiro can improve its overall productivity by 23%, thanks to optimisation of just one of its products.
- Increase in turnover of €40,000 per year and ability to easily optimise new designs.
- PEMADE have gained the ability to simulate whole complex structures, as opposed to their previous capabilities.
