The Challenge

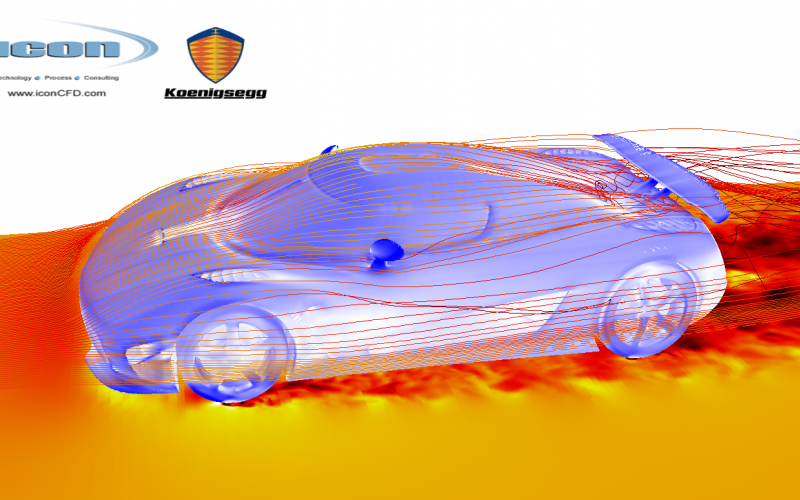

Analysing how air flows around a vehicle is essential to making it faster and more efficient. Physical testing is expensive due to the costs of models and test facilities. Computer simulation removes the need for these, and enables the engineers to make changes to the design more easily. However, simulating airflow with the required degree of accuracy requires computing power beyond the reach of most designers, mainly due to the capital costs of the equipment.

The Solution

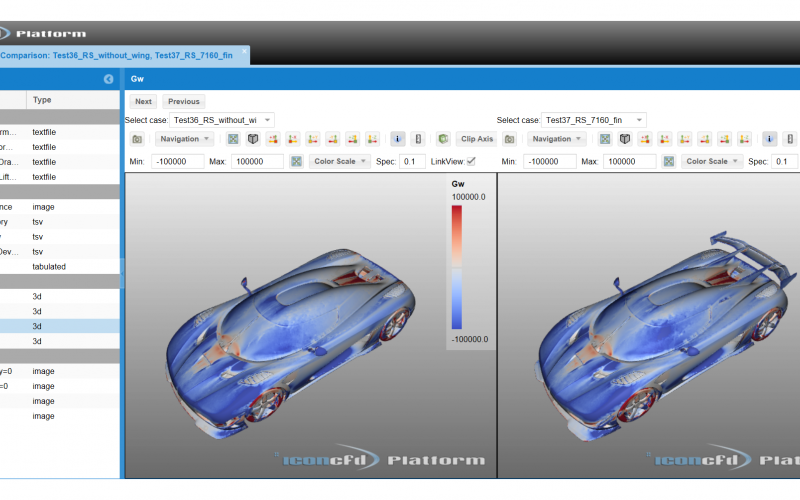

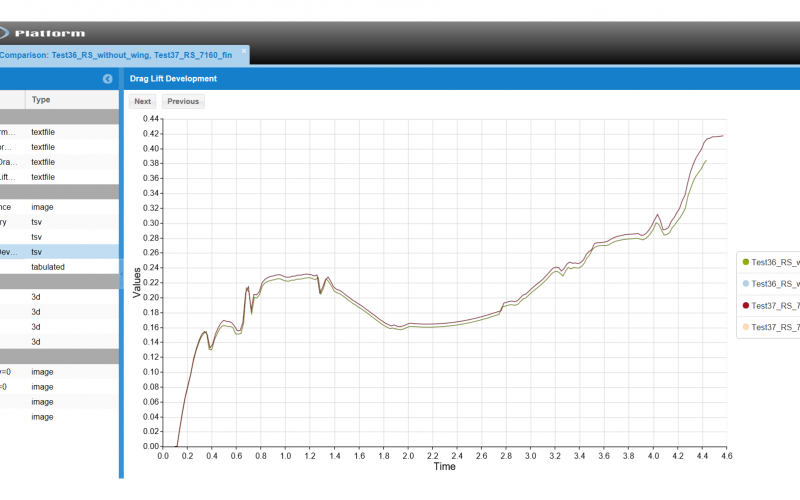

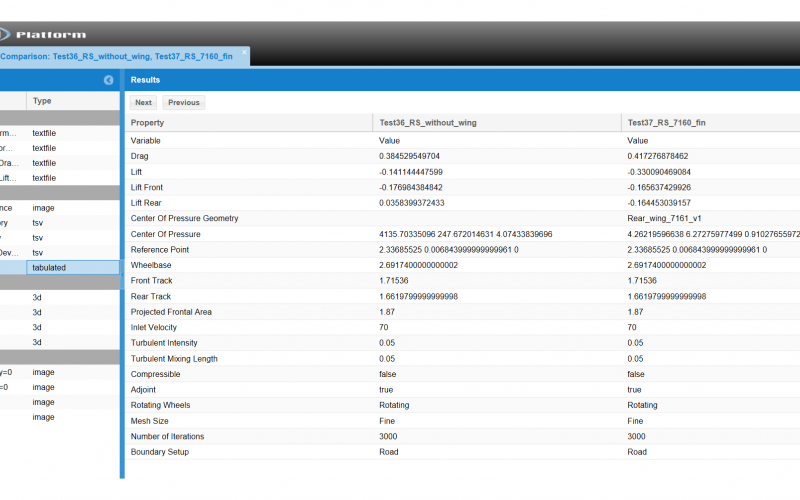

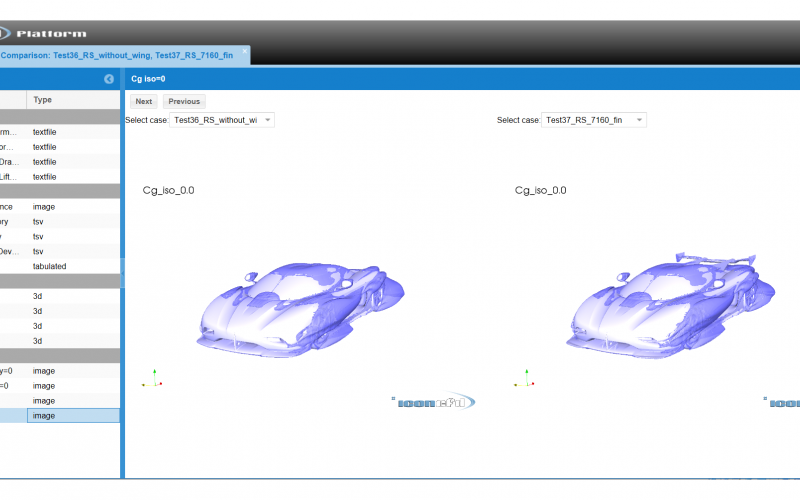

The solution developed by ICON is to provide cost-effective and easy-to-use access to high-performance computing. The ease of use is achieved by providing browser accessible ‘apps’ which provide the necessary features to set up and analyse simulations. The apps connect to HPC-systems which provide pay-per-use access; capital costs are avoided altogether, as is the need for experienced personnel to run the HPC systems. The result for the end-user is a feature-rich interface connected to computing resources capable of rapidly returning simulation results. The entry cost and operational costs are very attractive for small companies.

Business Impact

Obtaining an in-house capability for rotating wheel aerodynamic simulation requires an initial investment of €200,000 - €300,000 including hardware, and software licences allowing approximately 50 simulations per year. In addition, an annual maintenance and operational cost of approximately €100,000 including hardware warranties, electricity, software licences, etc. is required. This is a prohibitive cost for SMEs.

In comparison, a streamlined process accessed on-line and benefitting from on-demand HPC and ISV expertise could cost as low as €900 per simulation to the end user, therefore making high-end simulation affordable to SMEs. This can reduce or even eliminate the need for physical testing, saving further time and money on models and wind tunnels.

The experience of Koenigsegg is that around €100,000 can be saved annually on design costs by using this technology that was previously only affordable to large
companies.

For ICON, the apps they have developed will allow them to offer their services to new clients in the automotive SME sector.

Benefits

• €100,000 annual saving on design costs – saving 30% over previous solutions.
• High-end simulations for as little as €900 per simulation.
• No need for SME to purchase expensive equipment.
• Significant time saving as there is no need for physical testing.

Companies Involved

End User: Koenigsegg
HPC Expert and Provider: EPCC
ISV: ICON
